What is a 12V 4 Amp Power Supply?
author: Anita
2025-08-19
What is a 12V 4 Amp Power Supply? The Silent Powerhouse Behind Your Electronics
Picture this: Your Wi-Fi router suddenly dies during a video call. Your security camera reboots randomly.
Or your LED workshop lights flicker. Behind these frustrations?
Often an undersized or failing 12V 4A power supply – the unsung hero converting chaotic grid energy into clean, stable power.
Let’s demystify this critical component.
Volts, Amps, Watts: The Power Trinity Explained
A 12V 4A power supply delivers:
-
12 Volts (V): The electrical “pressure” pushing current.
-
4 Amps (A): The volume of electrons flowing per second.
-
48 Watts (W): Total power (12V × 4A = 48W).
⚡ Analogy: Voltage = water pressure in a hose. Amperage = gallons flowing. Wattage = total force hitting a waterwheel.
Inside the “Black Brick”: Engineering Brilliance
Crack open a quality 12V 4A supply (please don’t!), and you’ll find:
-
Transformer: Steps down 120V/240V AC to 12V AC.
-
Rectifier: Converts AC to DC using diodes.
-
Capacitors: Smooth ripples into steady current.
-
Switching Regulator: Adjusts voltage with 85-90% efficiency (vs. 60% in linear models).
-

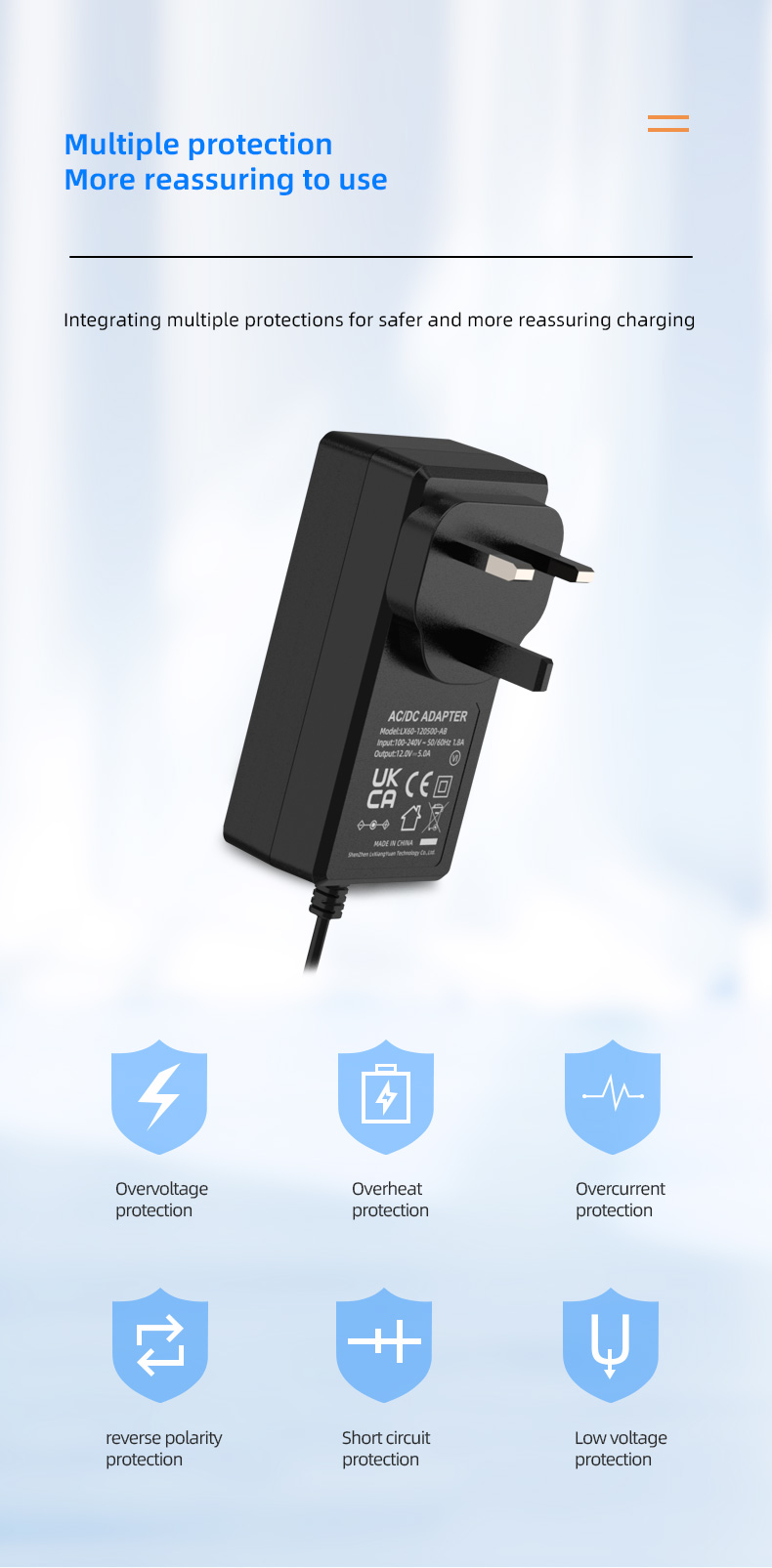

Protection Circuits: Guards against overloads, shorts, overheating.
⚠️ Cheap clones skip #4 and #5 – risking device damage!
Why “12V 4A” ≠ “12V 3A” – Matching Matters
-
Voltage (12V): Must match exactly. Too high fries circuits; too low causes underperformance.
-
Current (4A): Can be equal or higher. Your device draws only what it needs (e.g., a 2A router uses 2A from a 4A supply).
-
Wrong Adapter? A 5V/4A supply on a 12V device won’t work. A 12V/2A supply may overheat.
Real-World Heroes: Where 12V 4A Thrives
This 48W powerhouse fuels demanding devices:
-
Wi-Fi 6/7 Routers: High-speed models (e.g., ASUS RT-AX88U).
-
POE Injectors: Powers cameras/Access Points via Ethernet.
-
LED Arrays: 4-meter RGB strips without flicker.
-
3D Printers: Entry-level models (Creality Ender 3).
-
Lab Equipment: Benchtop multimeters, oscilloscopes.
? Stats: 12V is the #1 DC voltage for prosumer gear (2024 Electronics Trend Report).
Choosing Wisely: 5 Critical Checks
-
Certifications: UL/CE/FCC marks – non-negotiable for safety.
-
Connector Size: Match barrel plug inner/outer diameters (e.g., 5.5×2.1mm).
-
Efficiency Rating: ≥80% (look for “80 Plus” or Energy Star).
-
Protections: Over-current, over-voltage, short-circuit.
-
Cable Gauge: ≥20AWG for minimal voltage drop over 6+ feet.
Future-Proof Tech: GaN & Smart ICs
Modern 12V 4A supplies leverage:
-
GaN (Gallium Nitride): 30% smaller size, 40% less heat.
-
Digital ICs: Auto-adjust voltage for cable resistance.
-
Eco-Designs: Anker’s Prime uses 97% recycled plastics.
♻️ Impact: Recycling 10K adapters = 1 ton of e-waste saved (EPA).
Troubleshooting: 3 Failure Signs
-
Overheating: >60°C surface temp after 1 hour.
-
Voltage Sag: Dips below 11.4V under load (use a multimeter!).
-
Buzzing/Humming: Audible coil whine = failing capacitors.
Myth Busting
-
❌ “Higher Amps Damage Devices”: False – devices draw only needed current.
-
❌ “All 12V Adapters Are Interchangeable”: False – check polarity (center-positive vs. center-negative)!
Conclusion: The 48-Watt Workhorse
From smart homes to workshops, the 12V 4A power supply is the invisible backbone of modern electronics.
It transforms raw AC power into precision DC energy – reliably, efficiently, and safely.
Whether you’re streaming, creating, or innovating, remember: great power comes in unassuming black bricks.
